Description

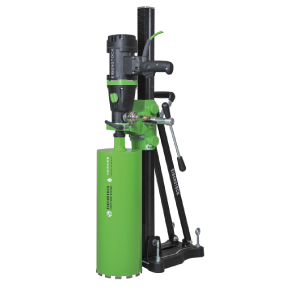

Diamond core drilling Eibonstock PLE 182

  • Wet drilling in reinforcforced concrete, natural stone and asphalt
  • Drilling in sand-lime brick, brickwork, clinker, brick and other abrasive materials in reinforced concrete, natural stone and asphalt
  • Drilling operators, civil engineering, sanitary, heating and ventilation construction, other installation companies, gardening and landscaping

features PLE 182

  • Electronic – soft start, over current cut-off, overload indication, cut off carbon brushes
  • 3-speed oil bath gearbox – for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
  • Mechanical safety clutch
  • Combination spindle with integrated connection for centering rod – fast, precise spot drilling
  • PUR-construction site cable – strong for heavy duty use
  • Integrated levels on machine and on the carriage, scale and hole center indicator on the drill rig – exact drilling
  • Collar mounting – variable machine position in the rig
  • Column of the rig can be adjusted to 45°
  • Compact combination base – fixing with anchor or vacuum (vacuum set necessary)
  • Feed lever change without any tools – easy change of the working site
  • Retrofitable wheel axle (accessory) – easy transport

Technical data Diamond core drilling Eibonstock PLE 182

230V
2,300 W
0-1.000/-2.200/-4.400 rpm
0-520/-1.200/-2.500 rpm
wet 12-182 mm / dry 12-202 mm
G1⁄2″ f + 11⁄4″ m
60 mm
22,4 kg
