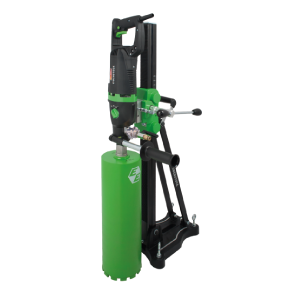

Diamond core drilling Eibonstock DBE 162
Description
Diamond core drilling Eibonstock DBE 162
area of application
- Drilling in sand-lime brick, brickwork, clinker, brick and other abrasive materials as well as wet drilling in pureforc concrete, natural stone and asphalt
- Sanitary, heating and ventilation construction, civil engineering, landscape construction
features Diamond core drilling Eibonstock DBE 162
- Electronic – soft start, temperature control and over current cut-off, overload indication, constant speed
- Service indicator – lights up approx. 10 working hours before the cut off carbon brushes need to be replaced
- 3-speed oil bath gearbox – for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
- Mechanical safety clutch
- Combination spindle with integrated connection for centering rod – fast, precise spot drilling
- PUR-construction site cable – strong for heavy duty use
- Changing system – almost conversion between wet and dry applications
- Integrated levels on machine and additional handle as well as on the carriage, scale and hole center indicator on the drill rig – exact drilling
- Quick-mounting system – apply the motor to the drill rig without the need for tools
- Column of the rig can be adjusted to 45°
- Compact combination base – fixing with anchor or vacuum (vacuum set necessary)
- Feed lever change without any tools – easy change of the working site
- Retrofitable wheel axle (accessory) – easy transport
Technical data Eibonstock DBE 162
230V
2,200 W
0-510/ -1.150/ -2.500 rpm
0-510/ -1.150/ -2.500 rpm
wet 12-162 mm/dry 12-202 mm
G1â„2″ i + 11â„4″
